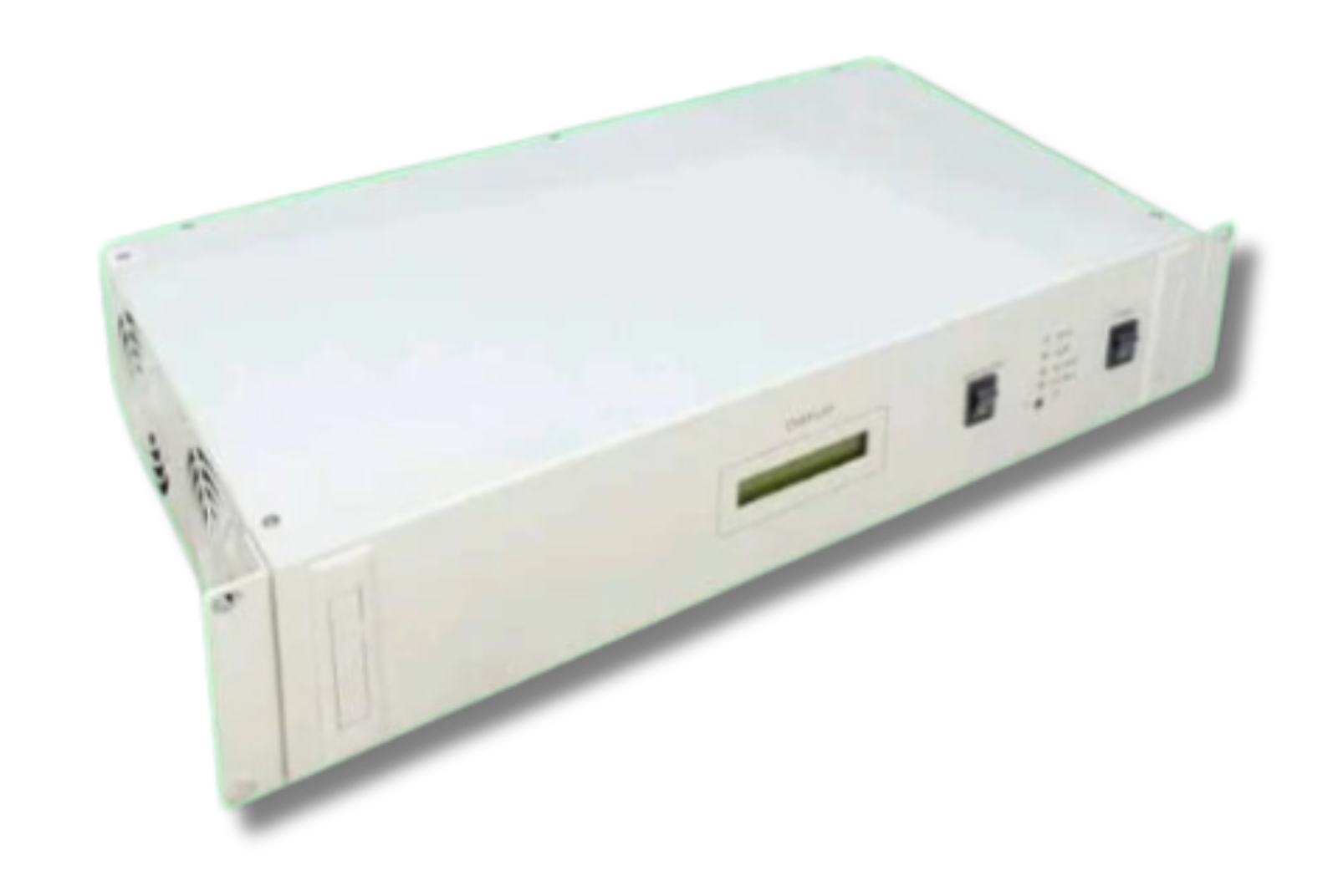

Product Specifications
110VDC
AC/DC Rectifier
General Specifications
Model
IPS-RT11020
Technical Characteristic
Parameter
Input
Single-Phase Three-Wire System (L/N/PE)
Input Voltage
220VAC ±10% 50/60Hz
Effectiveness
≥ 88%
Input Power Factor
≥ 0.9
Output Power
2200W
Output Voltage
110VDC
Rated Output Current
20A
Regulator Accuracy
±2V
Reliability
MTBF ≥ 100,000h
Battery Port
48VDC x 5A
Machine Dimension
L482 x W300 x H88 (mm)
Package Dimension
L610 x W360 x H170 (mm)
Net Weight / Gross Weight
8kg / 11kg
Cooling Method
Forced Air Cooling
Operating Temperature
-10°C ~ 50°C
Storage Temperature
-40°C ~ 85°C
